Z Axis

A list of components needed for the Z axis.
All necessary bolts and fittings are supplied with the components.
Castings will require painting!



OLYMPUS DIGITAL CAMERA

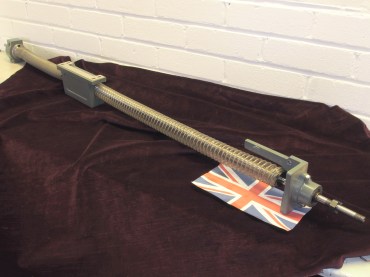

Z Axis Ball-Screw Assembly

Z Axis Ball-Screw Assembly is ready to bolt onto the lathe.







Part No.ZBSA001
Price£901.49  ex vat



OLYMPUS DIGITAL CAMERA

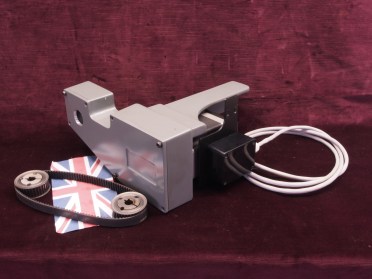

Z Axis Motor drive assembly

Z Axis Motor drive assembly





Part No.ZMDA001
Price £686.67 ex vat









OLYMPUS DIGITAL CAMERA

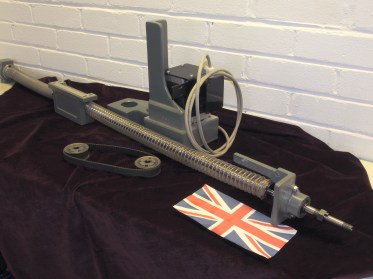

Z Axis Complete drive

Z Axis Ball-Screw and motor drive complete. Contains all of the mechanical components needed for Z axis motion.



Part No.
Price £1588.15  ex vat







OLYMPUS DIGITAL CAMERA
Z Axis Ball Screw & Nut

Z Axis fully machined and processed C5 precision Ball Screw and preloaded double ball nut that provides minimal backlash. Contains locknuts and hand-wheel drive dog.

Standard
Part No.ZBSS001
Price £485.33 ex vat
Longbed
Part No.ZBSL001
Price £454.17 ex vat







OLYMPUS DIGITAL CAMERA

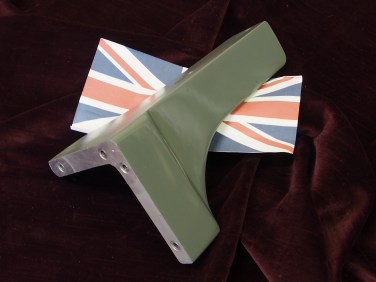

Saddle Bracket

Saddle Bracket support for the Z Axis Ball Nut.





Part No.SNB001
Price £104.53 ex vat









OLYMPUS DIGITAL CAMERA
Z Axis Left Bearing

Z Axis Left Bearing casting.
Supports the ball screw.
It is supplied with 2 angular contact bearings that are adjustable to minimize ball screw end float.

Part No.LBH001
Price £85.31 ex vat











OLYMPUS DIGITAL CAMERA

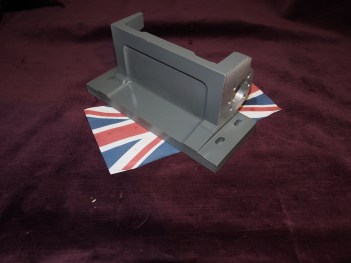

Z Axis Angle Bracket

Z Axis Angled Bracket.
Provides Main support for the motor and Belt Cover Housing.





Part No.ZA001
Price £67 ex vat









OLYMPUS DIGITAL CAMERA

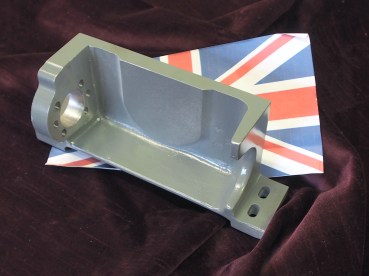

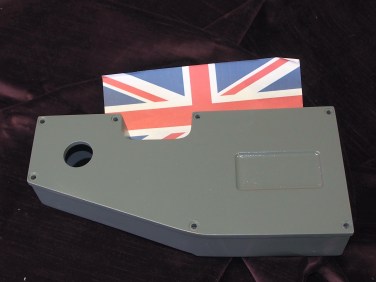

Z Axis Belt Cover Housing

Z Axis Belt Cover Housing/Motor Mounting.









Part No.ZBH001
Price £157.06 ex vat





OLYMPUS DIGITAL CAMERA

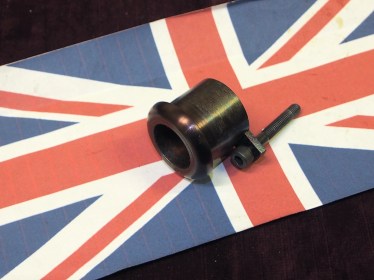

Z Axis Right Bearing Support

Z Axis Ball Screw Right Bearing Support.







Part No.RBM001
Price £64.40 ex vat







OLYMPUS DIGITAL CAMERA

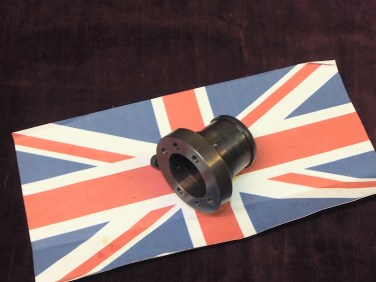

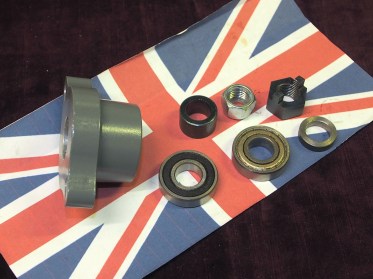

Z Axis Right Bearing

Z Axis Ball Screw Right Bearing Housing.
Supplied with 2 bearings and spacer.





Part No.RBH001
Price £71.36 ex vat









OLYMPUS DIGITAL CAMERA

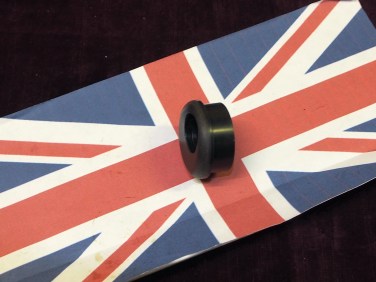

Z Axis Graduated Handwheel

Z Axis Graduated Plastic Handwheel.
7/16″ Bore.
This can replace the existing Myford hand-wheel to provide a lower inertia for faster traverse speeds.



Part No.ZHW001
Price £51.33 ex vat







OLYMPUS DIGITAL CAMERA
Z Axis Stepper Motor

Z Axis Stepper Motor,  Wiring Box and Mounting Bracket.
Supplied with 2 Metres shielded cable.





Part No.ZM001
Price £173.08 ex vat









OLYMPUS DIGITAL CAMERA
Z Axis Nut Retainer

Z Axis Ball Screw Nut and Right Hand Protective Cover Retainer.







Part No.ZNRR001
Price £38.24 ex vat







OLYMPUS DIGITAL CAMERA
Z Axis Left Cover Mount

Z Axis Ball Screw Left side protective Cover Mounting.







Part No.ZLCM001
Price £26.13 ex vat







OLYMPUS DIGITAL CAMERA

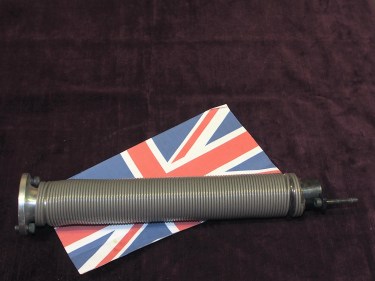

Z Axis Left Protective Cover

Z Axis Ball Screw – Left Protective Cover Complete Assembly. Cover can be sold separately, please ask.







Part No.ZLCC001
Price £72.80 ex vat







OLYMPUS DIGITAL CAMERA
Z Axis Left Side-Centre Protective Cover Mount

Z Axis Ball Screw Protective Cover Mounting for the Left side – inner.







Part No.HLCM001
Price £32.20 ex vat







OLYMPUS DIGITAL CAMERA
Z Axis Right Side Protective Cover Mount

Z Axis Ball Screw Protective Cover Right Side Retainer.







Part No.HRM001
Price £10.08 ex vat









OLYMPUS DIGITAL CAMERA

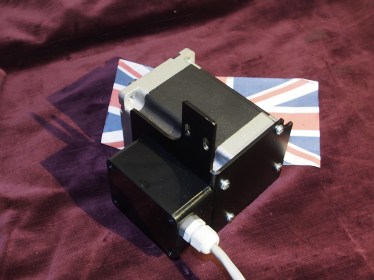

Z Axis Homing Switch

Z Axis Optical Homing Switch.
Supplied with 2 Metre shielded cable.







Part No.ZHS001
Price £72.80 ex vat







OLYMPUS DIGITAL CAMERA

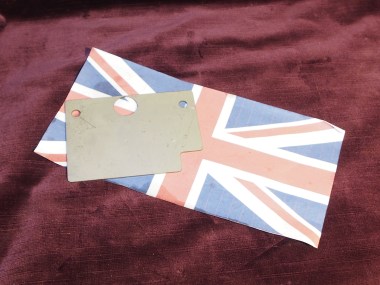

Homing Switch Vane

Stainless Steel  combined Homing Switch Vane for X and Z Axes





Part No.HSV001
Price £8.40 ex vat











OLYMPUS DIGITAL CAMERA

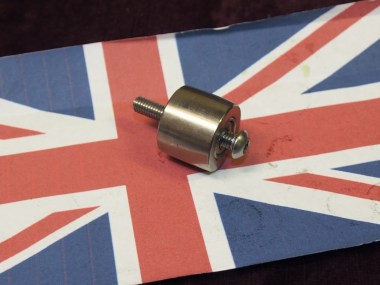

Z Axis Belt Guide Roller

Z Axis Belt Guide.









Part No.BGR001
Price £20.07 ex vat







OLYMPUS DIGITAL CAMERA

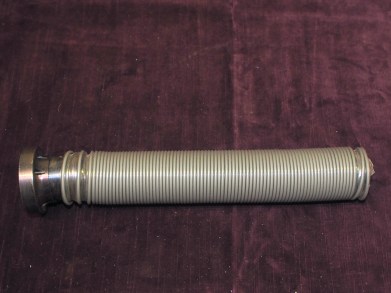

Z Axis Right Protective Cover

Z Axis Right Protective Cover Assembly.







Part No.ZRCC001
Price £60.29 ex vat









OLYMPUS DIGITAL CAMERA

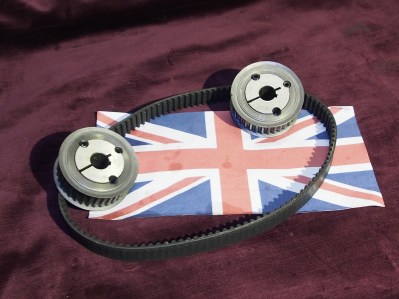

Z Axis Timing Pulleys & Belt

Z Axis Timing Pulleys & Belt.

1 Belt
2 Pulleys





Part No.ZPB001
Price £51.33 ex vat









OLYMPUS DIGITAL CAMERA
Saddle Bracket for power cross-feed models

Saddle Bracket for a power cross-feed model. This casting will need the front edge milling to match your saddle

Part No.SNBPC001
Price £128.80 ex vat
