X Axis

A list of components that are needed for the X axis.
If it’s not listed-please ask for details.

All the necessary bolts and fittings are supplied with the components.
Castings will require painting!

OLYMPUS DIGITAL CAMERA

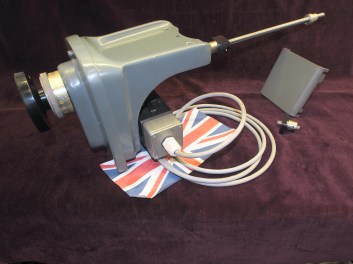

X Axis Complete assembly



X Axis Complete assembly

Part No.XAC001
Price £826.67 ex vat









OLYMPUS DIGITAL CAMERA
Cross-Slide Angle Support

Cross-slide Angle Bracket Casting provides an extremely rigid support for all of the X axis components which is vital for accuracy.



Part No CSA001.
Price £95.00 ex vat







OLYMPUS DIGITAL CAMERA

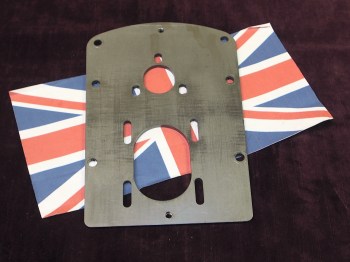

X Axis Motor Mount

Cross-slide X axis motor and bearing mounting plate







Part No. XMM001
Price £36.00 ex vat





OLYMPUS DIGITAL CAMERA

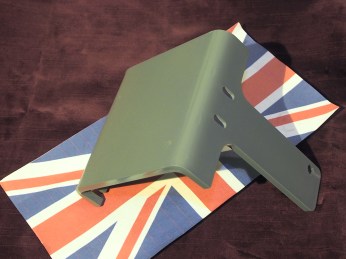

X Axis Belt Cover

X Axis Belt Cover









Part No. XBC001
Price £32.33 ex vat





OLYMPUS DIGITAL CAMERA
X Axis Graduated Dial

X Axis 56mm Graduated Dial Assembly.
Bore diameter 10mm
A nice clear dial for those that still require some occasional manual control.



Part No. XD001
Price £105.00 ex vat







OLYMPUS DIGITAL CAMERA

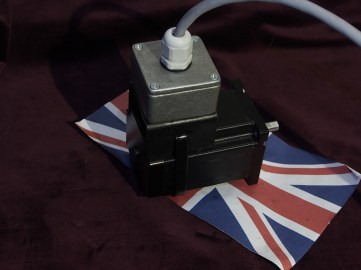

X Axis Stepper Motor

X Axis Stepper Motor & Wiring box.
Supplied with 2 Metre shielded cable.



Part No. XM001
Price £106.83 ex vat







OLYMPUS DIGITAL CAMERA

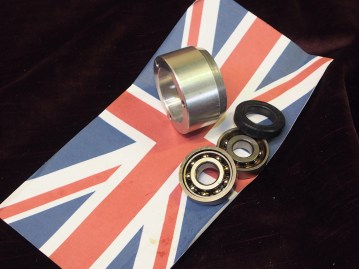

X Axis Bearing Assembly

X Axis  Bearing Assembly with angular contact bearings that are preloaded to minimize ball screw end float.





Part No.XAB001
Price £63.08 ex vat







OLYMPUS DIGITAL CAMERA

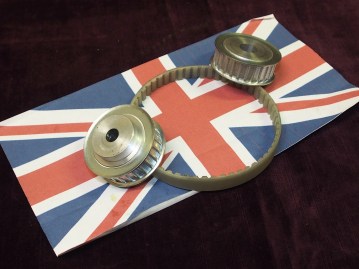

X Axis Timing Pulleys and Belt

X Axis Timing Pulleys and drive belt







Part No.XATP001
Price £47.45 ex vat







OLYMPUS DIGITAL CAMERA

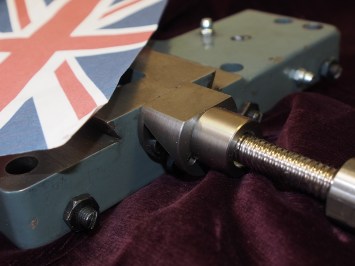

X Axis Nut Displacer

X Axis Nut Displacer allows a 10mm Ball Screw to be fitted.
(Saddle, Ball screw &  Ball Nut not included)



Part No. XND001
Price £31.85 ex vat







OLYMPUS DIGITAL CAMERA

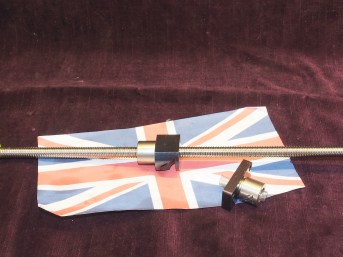

X Axis Ball-Screw

1. X Axis Fully Machined 10mm Ball Screw (High precision Swiss).
1. Front Ball Nut.
1. Rear Ball Nut
1. Nut displacer
The rear nut is adjustable to allow a precise preload in order to minimize backlash.

Part No.XBS001
Price £262.50 ex vat





OLYMPUS DIGITAL CAMERA
Cross-Slide End Cover

Cross-Slide End Cover and X Axis Homing Switch mount.
Includes cross-slide drilling jig.





Part No. CSE001
Price £46.67 ex vat







OLYMPUS DIGITAL CAMERA
X Axis Homing Switch

X Axis Optical Homing Switch and 2 Metre long Shielded Cable.







Part No. XHS001
Price £65.00 ex vat







OLYMPUS DIGITAL CAMERA
X Axis Plastic Handwheel

X Axis Lightweight Plastic Hand-Wheel.







Part No. XH001
Price £10.52 ex vat







OLYMPUS DIGITAL CAMERA

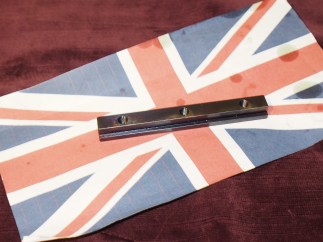

Cross-Slide Tee Nut

Long Tee Nut for mounting the Cross-Slide Angle Support.







Part No.CSTN001
Price £7.97 ex vat







OLYMPUS DIGITAL CAMERA
X Axis Rear Nut Mounting

X Axis Rear Nut Mounting Plate and drilling jig
(Ball Screw Nut and Saddle not included)





Part No. XRNP001
Price £50.00 ex vat





OLYMPUS DIGITAL CAMERA
Cast Iron Tool Post

Tool Post Mounting (Cast Iron).
This replaces the Top-Slide.
Image maybe different.





Part No.TP001
Price £81.92 ex vat





OLYMPUS DIGITAL CAMERA
X Axis Wiring Box Mount

X Axis Wiring Box Mounting.







Part No. XWBM001
Price £12.50 ex vat
